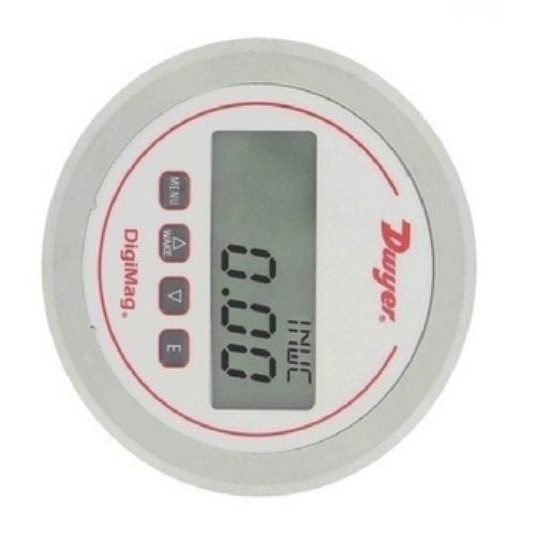

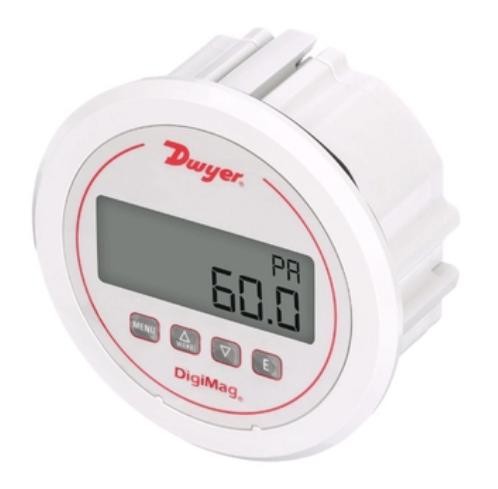

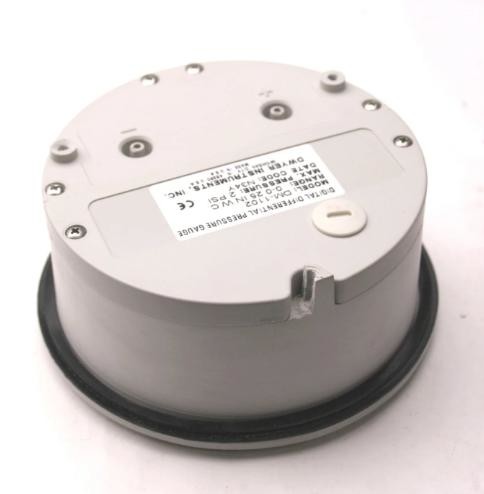

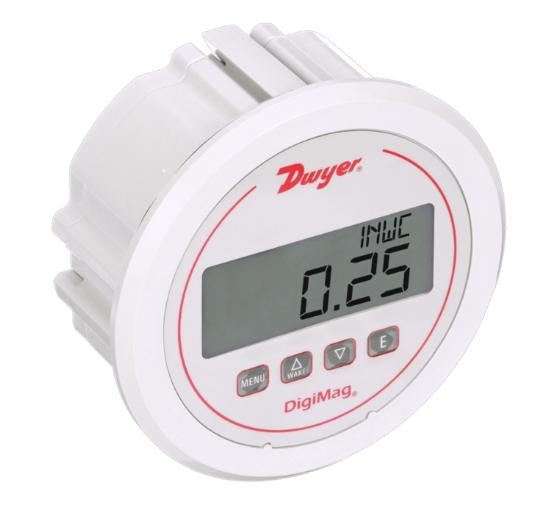

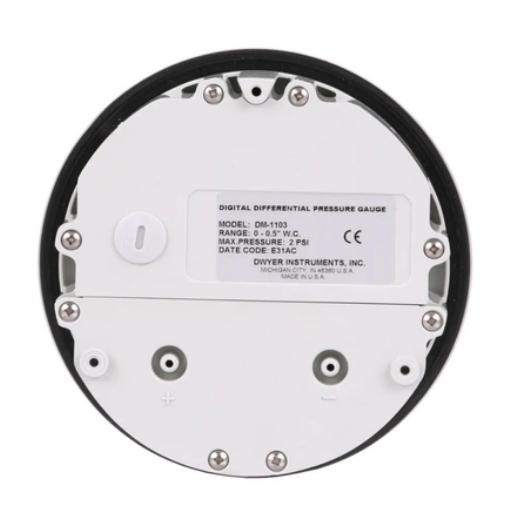

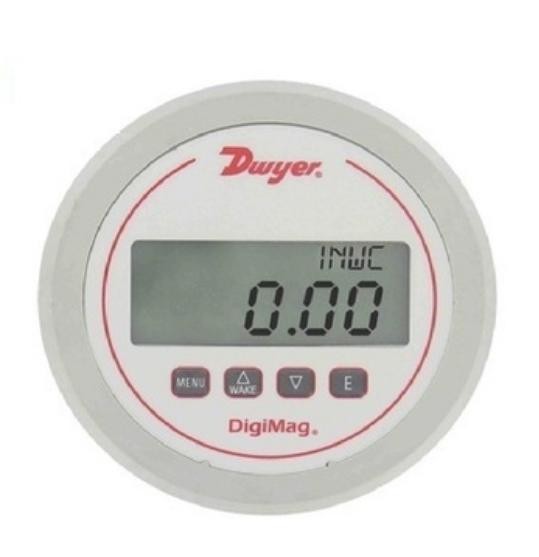

Dwyer DM-1102 Differential Digital Pressure Gauge in stock

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।
Whatsapp:0086 18588475571
WeChat: 0086 18588475571
स्काइप: sales10@aixton.com
यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।
xElectrical Entry | Cable gland for 0.114 to 0.250" (2.9 to 6.4 mm) diameter cable | Accuracy | ±1% FS including linearity |
---|---|---|---|
Temperature Limits | -18 to 60°C | Current Consumption | Maximum 5 mA |
Original DWYER 5 mA 9-24 VDC ±1% FS Digital Differential Pressure Gauge DM-1102 Lpg Pressure Gauge DM-1000 series
- Battery Power or 24 Volt
- Low Cost
- Used in Isolation/ Hospital Environments & Temporary (Pop-Up) Rooms
SPECIFICATIONS
Service | Air and non-combustible, compatible gases |
Wetted Materials | Consult factory |
Housing Materials | Glass filled plastic. |
Accuracy | ±1% FS including linearity |
Temperature Limits | 0 to 140°F (-18 to 60°C) |
Long Term Stability | ±1% FS per year |
Display | 4-digit LCD (Digits: 0.60"H x 0.33"W) |
Power Requirements | 9V battery |
The DigiMag® Series DM-1000 Digital Differential Pressure and Flow Gages monitor the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® Differential Pressure Gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.
NIST CALIBRATION available in Product Configurator.
FEATURES
- Field programmed reduces installation time
- User selectable parameters for pressure, air velocity or flow permits same device for multiple applications
- Specialized filter set point for alerts when maintenance is due
- Security levels permit matches the correct access to right skill
- Power versatility works with 9-24 VDC or 9 V battery allows deployment in a variety of spaces wired or not
APPLICATIONS
• Filter monitoring
• Air velocity or flow
• Blower vacuum monitoring
• Fan pressure indication
• Duct, room, or building pressures
• Clean room positive pressure indication
DESCRIPTION
The Series DM-1000 DigiMag® Digital Differential Pressure and Flow Gage monitors the pressure of air and compatible gases just as its famous analog predecessor the Magnehelic® differential pressure gage. All models are factory calibrated to specific ranges. The 4-digit LCD can display readings in common English and metric units so conversions are not necessary. The simplified four button operation reduces set up time and simplifies calibration with its digital push button zero and span.
Model | Description |
---|---|
DM-1102 | DigiMag® differential digital pressure gage, range 0-0.25" w.c. |
DM-1103 | DigiMag® differential digital pressure gage, range 0-0.5" w.c. |
DM-1104 | DigiMag® differential digital pressure gage, range 0-1" w.c. |
DM-1105 | DigiMag® differential digital pressure gage, range 0-2" w.c. |
DM-1107 | DigiMag® differential digital pressure gage, range 0-5" w.c. |
DM-1108 | DigiMag® differential digital pressure gage, range 0-10" w.c. |
DM-1109 | DigiMag® differential digital pressure gage, range 0-15" w.c. |
DM-1110 | DigiMag® differential digital pressure gage, range 0-25" w.c. |
DM-1111 | DigiMag® differential digital pressure gage, range 0-50" w.c. |
DM-1112 | DigiMag® differential digital pressure gage, range 0-100" w.c. |
DM-1122 | DigiMag® differential digital pressure gage, range 0.25-0-0.25" w.c. |
DM-1123 | DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c. |
DM-1124 | DigiMag® differential digital pressure gage, range 1-0-1" w.c. |
DM-1125 | DigiMag® differential digital pressure gage, range 2-0-2" w.c. |
DM-1127 | DigiMag® differential digital pressure gage, range 5-0-5" w.c. |
DM-1128 | DigiMag® differential digital pressure gage, range 10-0-10" w.c. |
DM-1202 | DigiMag® differential digital flow gage, range 0-0.25" w.c. |
DM-1203 | DigiMag® differential digital flow gage, range 0-0.5" w.c. |
DM-1204 | DigiMag® differential digital flow gage, range 0-1" w.c. |
DM-1205 | DigiMag® differential digital flow gage, range 0-2" w.c. |
DM-1207 | DigiMag® differential digital flow gage, range 0-5" w.c. |
DM-1208 | DigiMag® differential digital flow gage, range 0-10" w.c. |
DM-1209 | DigiMag® differential digital flow gage, range 0-15" w.c. |
DM-1210 | DigiMag® differential digital flow gage, range 0-25" w.c. |
DM-1211 | DigiMag® differential digital flow gage, range 0-50" w.c. |
