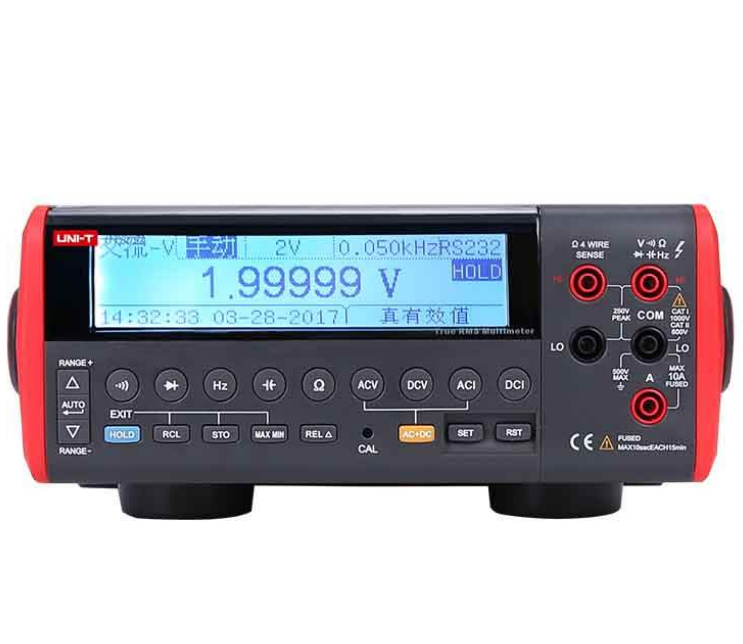

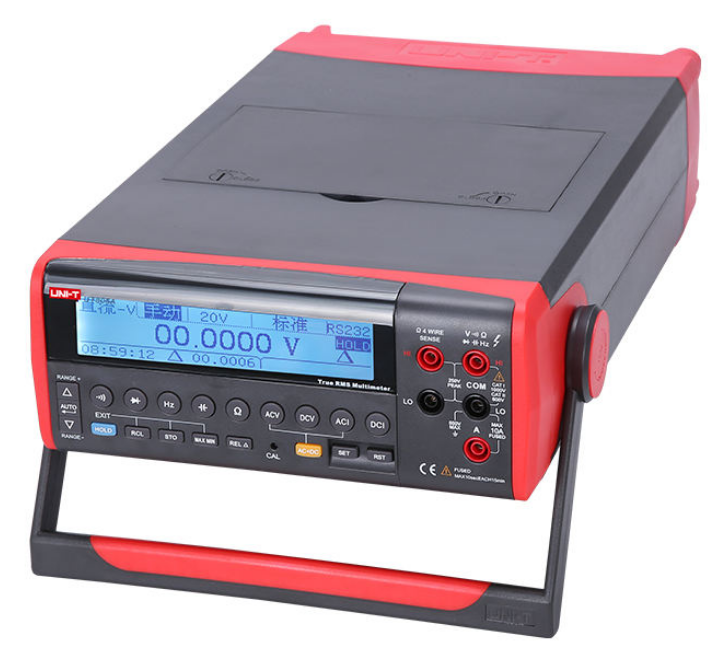

UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC

  • UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC
  • UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC
  • UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC
  • UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC
Place of Origin China
ब्रांड नाम -
प्रमाणन -
Model Number UT805A
Minimum Order Quantity 1
मूल्य USD350/PC
Packaging Details Original
Delivery Time in stock
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 1000

नि: शुल्क नमूने और कूपन के लिए मुझसे संपर्क करें।

Whatsapp:0086 18588475571

WeChat: 0086 18588475571

स्काइप: sales10@aixton.com

यदि आपको कोई चिंता है, तो हम 24 घंटे ऑनलाइन सहायता प्रदान करते हैं।

x
उत्पाद विवरण
Measuring Current Range 2mA/200mA/10A Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ
Operating Temperature 0-40 Usage Auto Testing Machine
Bandwidth (Hz) 100kHz
प्रमुखता देना

UNI-T UT805A benchtop multimeter

,

True RMS digital multimeter

,

AC/DC benchtop multimeter
एक संदेश छोड़ें
उत्पाद विवरण
Manufacturer
 UNI-T
Type of meter
 benchtop multimeter
Kind of display used
 LCD
Display parameters
 5,5 digit, (200000)
Illumination
 yes
True effective value measurement
 True RMS AC
DC voltage measuring range
 1µV...200mV/2V/20V/200V/1kV
DC voltage measuring accuracy
 ±(0.015% + 3 digit)
AC voltage measuring range
 1µV...200mV/2V/20V/200V/750V
AC voltage measuring accuracy
 ±(0.2% + 100 digit)
DC current measuring range
 0.01µA...2mA/200mA/10A
DC current measuring accuracy
 ±(0.05% + 10 digit)
AC current measuring range(1) indirect measurement)

1) indirect measurement
 0.01µA...2mA/200mA/10A
AC current measuring accuracy
 ±(0.3% + 400 digit)
Resistance measuring range
 1mΩ...200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Resistance measuring accuracy
 ±(0.02%+6 digit)
Capacitance measuring range
 10pF...60nF/600nF/6µF/60µF/600µF/6mF
Capacitance measuring accuracy
 ±(2%+ 5 digit)
Frequency measuring range
 1...6kHz/60kHz/600kHz/6MHz/60MHz
Frequency measuring accuracy
 ±(0.1%+3 digit)
Diode test
 0...6V
Continuity test
 acoustic indication, <10Ω
Measurement
 AC current, AC voltage, capacitance, continuity, DC current, DC voltage, frequency, resistance
Software
 included
Measurement memory
 100
Conform to the norm
 CAT I 1000V CAT II 600V EN 61010
Dimensions
 300x245x105mm
Supply voltage
  • 230V AC
Measuring instrument features
  • auto and manual ranging
  • HOLD function
  • MIN/MAX/REL function
  • overflow indication
  • selection of AC or AC+DC measurement

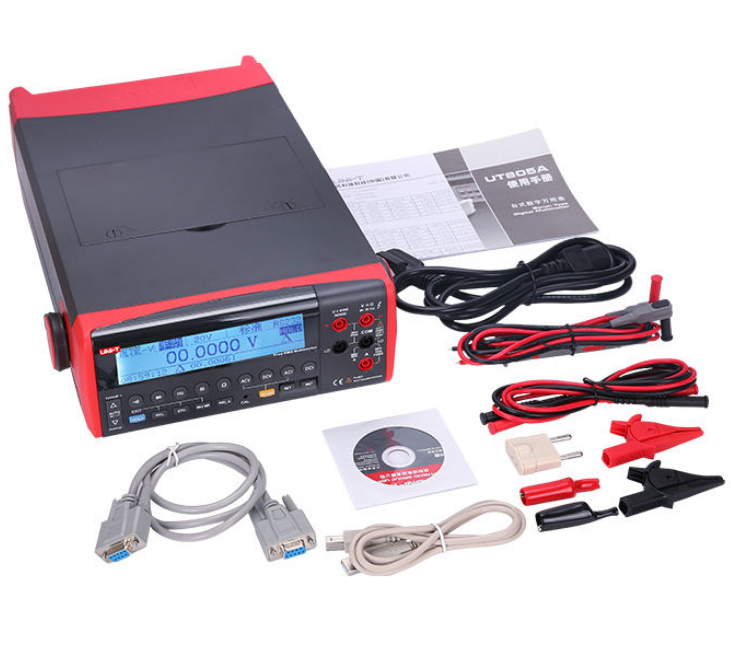

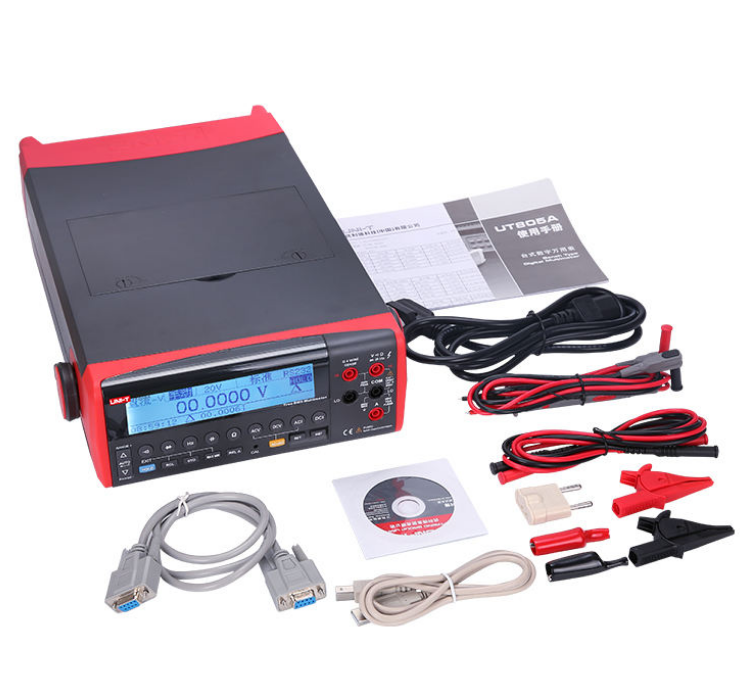

Standard equipment
  • mains cable
  • RS232 cable
  • test leads
Gross weight4.0313 kgUNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC 0UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC 1UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC 2UNI-T UT805A Benchtop Digital Multimeter True RMS AC/DC 3
