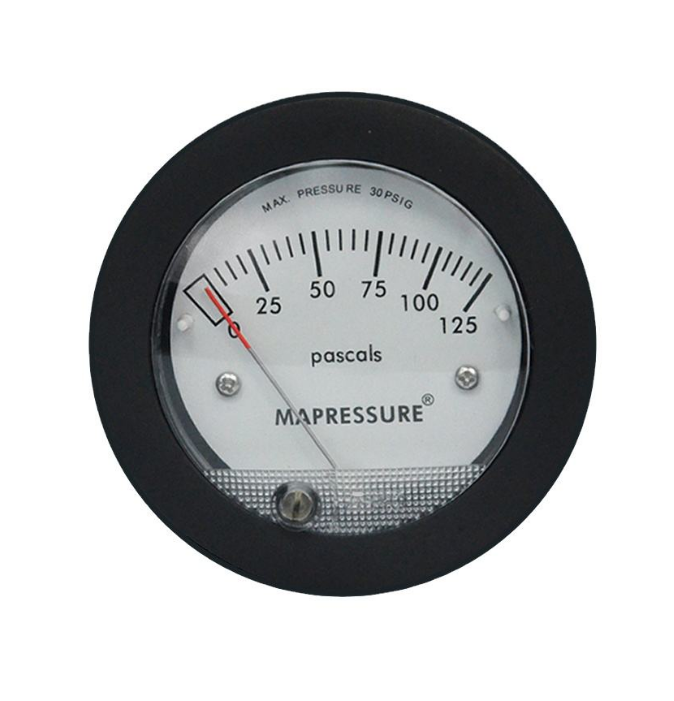

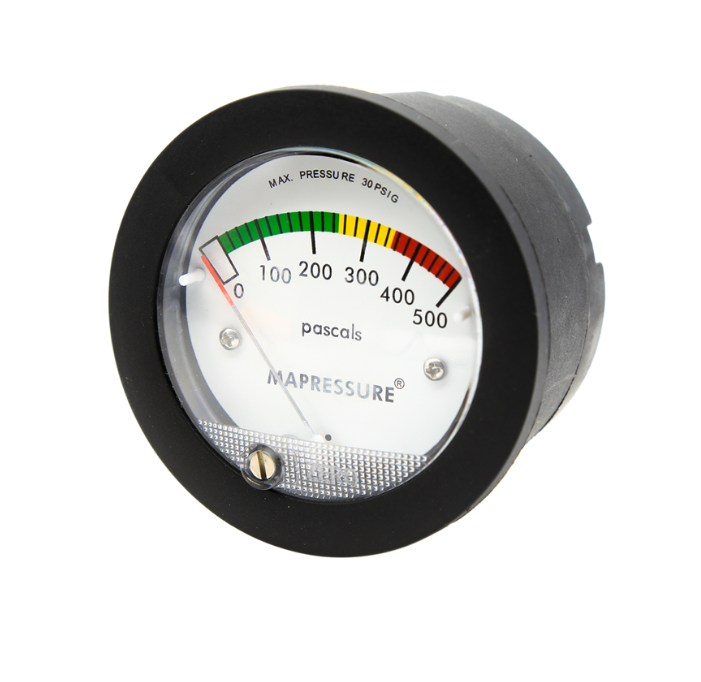

TE5000 Mini Low Differential Pressure Gauge with 5% Accuracy up to 2KPa

उत्पत्ति के प्लेस चीन
ब्रांड नाम MAGRFHELIC
प्रमाणन -
मॉडल संख्या TE5000
न्यूनतम आदेश मात्रा 1
मूल्य USD20/PC
पैकेजिंग विवरण मूल
प्रसव के समय स्टॉक में
भुगतान शर्तें एल/सी, डी/ए, डी/पी, टी/टी, वेस्टर्न यूनियन
आपूर्ति की क्षमता 10000
उत्पाद विवरण
गारंटी 1 वर्ष शुद्धता 70 ° F (21.1 ° C) पर FS का 5%
कनेक्शन कांटेदार, 3/16 "आईडी ट्यूबिंग (मानक) के लिए; 1/8" पुरुष एनपीटी (वैकल्पिक) वज़न 6 औंस (170.1 ग्राम)
एक संदेश छोड़ें
उत्पाद विवरण

Key attributes



Pressure Gauge Type
Differential Pressure Gauges
warranty
1 Year
customized support
OEM
Measurement Range
125Pa, 250Pa, 500Pa, 750Pa, 1KPa, 2KPa,etc.
brand name
MAGRFHELIC
model number
TE5000
place of origin
Zhejiang, China
Ambient Temperature
20 to 120°F (-6.67 to 48.9°C)
Accuracy
±5% of FS at 70°F (21.1°C)
Paint
Black

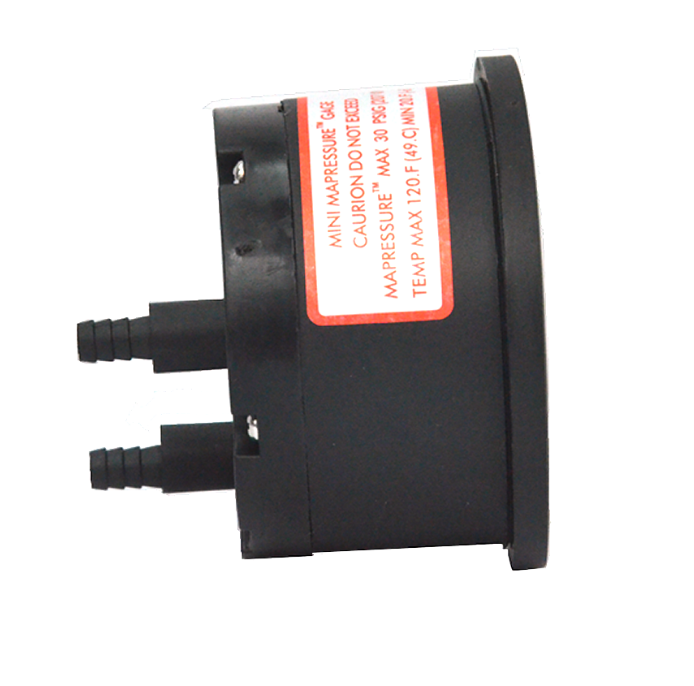

Connections
Barbed, for 3/16" ID tubing (standard); 1/8" male NPT (optional)
Rated total pressure
Rated total pressure: 50 pound/ square inch(3.445 milliBar)
Weight
6 oz (170.1g)
Housing
Glass-filled nylon, polycarbonate lens
